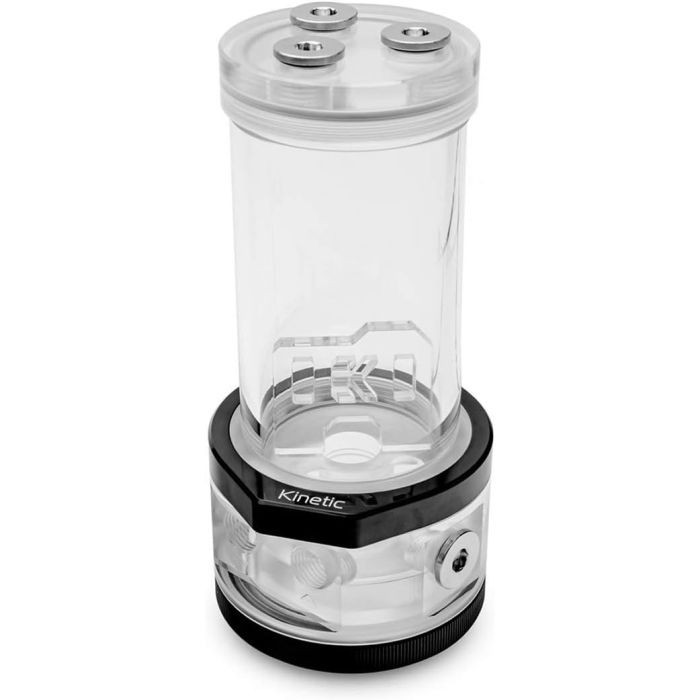

EKWB EK-Quantum Kinetic TBE 200 Reservoir with D5 Body, D-RGB, Pump Not Included, Plexi

EK-Quantum Kinetic TBE D5 Body D-RGB are the stand-alone pumpless versions of the newly released tubular style Kinetic TBE combo units. This means the customer is able to upgrade his old EK-XRES Revo D5 unit or to utilize any existing previously owned D5 pump. These combo units are equipped with a total of six G1/4 ports so that users can choose the most optimal setup for their liquid cooling loops.

The top now features three G1/4" ports, one of which has a pre-installed nickel-plated brass internal tube which helps to prevent the splashing of the coolant inside the reservoir if the top is to be used as an inlet.

Another three industry-standard G1/4" ports are available in the bottom combo housing. The upgrade compared to the previous combo unit is the 3rd available side port usable as either an optional inlet or a drain port.

The 60mm diameter tube is made of high-quality acrylic material just like the reservoir bottom and top while the sealing is performed by a quality EPDM o-ring.

The integrated addressable D-RGB is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D-RGB header.

This reservoir can be easily upgraded with longer acrylic tubes used by EK-RES X3 series reservoirs.

Technical specifications:- Reservoir diameter 60mm- Reservoir free volume: 205mL- Overall unit height (with pump installed): 200mm- Mounting hole pattern: 65x34mm- D-RGB connector standard 3-pin (5+, Digital, Blocked, Ground)

Enclosed:- EK-Quantum Kinetic TBE 200 Body D-RGB- Mounting clip with rubber insert- Self-adhesive mounting hole pattern sticker- Mounting mechanism (incl. required Allen keys)- Installation manual

Model: 3831109822487
